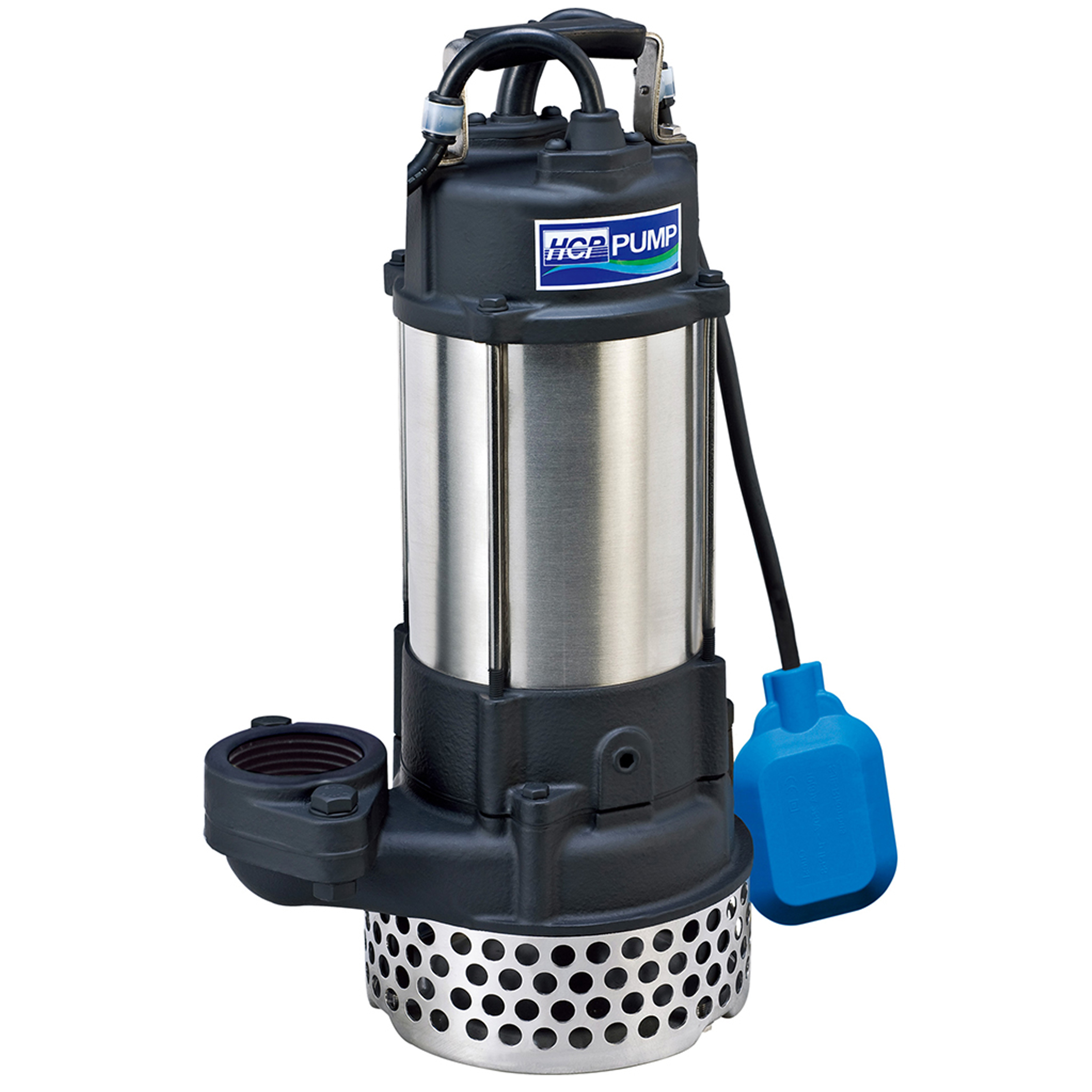

HCP Submersible Pump Model AN21.5 (320l/min @19m head) 1.5HP, 2” Outlet

Description

Model: AN21.5

HCP AN21.5 (made in Taiwan) is a submersible pump for general waste water.

• 1 phase and 3 phase model
• With or without auto float switch (HCP AN21.5F and AN21.5)

Features

• A precision manufactured motor is achieved by utilising the highest standard of quality control.
• All rotors adopt heat treatment methods for drive shaft assembling.
• Stator winding impregnated with varnish that is heat dried in an industrial oven.
• HCP’s professional assembly line, complimented with a synthesised production test, ensures the highest level of final pump quality.
• Standard accessories include : cable with an epoxy resin sealed water resistant cable base, Auto-cut thermal motor protector, dual mechanical seals and lip seal design.

Applications

• Waste water
• Sump drainage
• Flood control
• Dewatering for fish pond or basement and cellars

Limits of use

• Liquid Temperature: 0~40°C
• Submersion Depth: 30m (100ft)

Specifications
